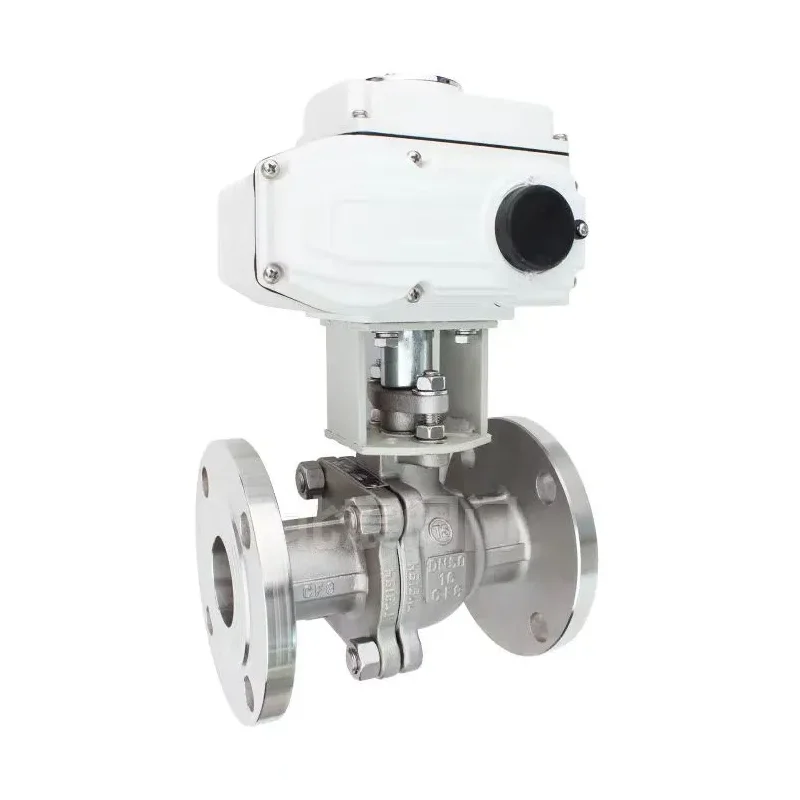

Electric acless flange ibhola ibhola le-flange

I-valve yensimbi yensimbi engenacala ye-filange ekhiqizwa yiShengshi Huagong yethu iyi-valve yokulawula ezenzakalelayo eqhutshwa ngu-actuator kagesi. Ikwamukela umzimba we-valve yensimbi ephezulu kakhulu kanye nokwakheka kwe-flange kokuxhumeka. Kusetshenziswa kabanzi ekucindezelweni okuphezulu, okushisa kakhulu noma okulimazayo kwabezindaba kumapayipi e-petroleum, amakhemikhali, kagesi, amakhambi, ukudla kanye neminye imboni ukufeza imisebenzi ekushibilikezwayo noma yokulawula imisebenzi.

Thumela Uphenyo

Incazelo Yomkhiqizo

Umzimba we-valve / ibhola lensimbi yethu yensimbi engenasici yensimbi ye-flange ye-flange yenziwe ngensimbi engama-304/316 yensimbi engagqwali (ngokuzithandela), enobuhle bokumelana nokugqwala, amandla aphezulu okushisa namandla aphezulu; Izinto zokubopha uphawu zalo mkhiqizo yi-PTFE (polytetrafluoroethylene, lapho i-Metal Hard Seal ilungele izimo zokushisa eziphakeme futhi ingaqinisekisa ukuvuza kwe-zero.

Ngemuva kokuthola isinali yokulawula, i-actuator kagesi yensimbi yensimbi engenasici idonsa i-valve stem ukuze ijikeleze i-90 °, ukushayela ibhola ukuzungeza ukufeza ukuvulwa okugcwele (ukujikeleza okuphakathi nendawo) noma ukuvala ngokuphelele). Ukusekela actUitors eziguqukayo kungafinyelela ukulungiswa okungcolile okungu-0-90 ° futhi kulawule ukugeleza okunembile.

Izinzuzo Zomkhiqizo

Impilo Esikhathi Eside: Izinto ezingagqwali zensimbi + seal ezivinjelwe - Impilo yenkonzo idlula izikhathi eziyi-100,000.
I-Intelligent: isekela ukulawulwa okukude / i-PLC / DCS System ukuhlanganiswa.
I-ZEROUCHAGE: I-V-Shaped Ball Design + Seal Double Seal, Level Searling ifinyelela ezingeni le-ANSIVI.
Ukulungiswa okulula: Idizayini eguqukayo, asikho isidingo sokuhlakaza umzimba we-valve ukuze ungene esikhundleni sophawu.

Amapharamitha Ezobuchwepheshe:

Isigaba seParamitha	Incazelo eningilizayo
Izinto ze-valve zomzimba	304 insimbi engagqwali / 316 insimbi engagqwali / 316l insimbi engagqwali (Okokuzithandela)
Indlela yokuxhuma	Ukuxhumana kwe-Flange (Okujwayelekile: GB / T, ANSI, DIN, JIS, njll.)
Umphezulu we-Flange uphawu	I-RF (ubuso obuphakanyisiwe) / FF (indiza egcwele) / I-RTJ (Ring Ring Right Right)
Ububanzi bemizi (DN)	I-DN15 ~ DN500 (ukusekela ububanzi obungeyona eyejwayelekile)
Izinga lokucindezela	PN1.6, PN2.5, PN4.0, PN6.4MPA (noma i-Class150, Class300, njll.)
Izinga lokushisa elisebenzayo	-29 ℃ ~ + 200 ℃ (PTFE seal) -29 ℃ ~ + 450 ℃ (i-Metal Hard Soal)
Uhlobo oluphakathi	Amanzi, umusi, uwoyela, uketshezi lwe-acidic no-alkaline, amagesi (imidiya elonakalisayo kufanele akhonjiswe)
Imodi yokushayela	I-Electric Actuator (Manual kanye ne-Pneumatic Optional)
Amandla okuhlinzekwa kwamandla	I-AC220V / AC380V / DC24V (Amanye amavolomitha angahle abekwe ngokwezifiso)
Isiginali yokulawula	Shintsha Uhlobo: Ukuxhumana nje Uhlobo lokulungiswa: 4-20ma / 0-10V
Ileveli yokuvikela	IP67 / IP68 (Untshontshe kanye Nokungenzi Materproof)
Ibanga lobufakazi bobufakazi	I-EX DⅱBT4 / EX Dⅱct6 (Ngokuzithandela)
Izici Zokugeleza	Isilonda esigcwele (akukho ukulahleka kokugeleza) / okuncishisiwe (ukulondolozwa kwesikhala)
Ukubopha uphawu	I-PTFE (polytetrafluoroethylene) / PPL (i-PolyPropylene eqinisiwe) / Metal Hard Seal
Izinga lokuvuza	I-ANSI CLASS CLASS VI (SOFT Seal) / Ansi Class IV (Metal Seal)
Isikhathi sokushintsha	≤15 imizuzwana (kuya ngemodeli ye-actuator)

Electric Stainless Steel Flange Ball Valve
